OPTIBIM PRO BEAM Version 3.0
IS 456:2000 Reinforced Concrete Module
IS 456:2000 • LSM • OpenSeesPy Validated

Reinforced Concrete
Beam Design
for IS 456:2000

Design, analyse and audit reinforced concrete beams to IS 456:2000. Generate professional PDF reports, Excel batch outputs and OpenSeesPy-validated results—from a single beam to enterprise-scale projects.

Watch Demo
✓ Beam Design
✓ Compliance Audit
✓ OpenSeesPy Validation
✓ Professional PDF Reports
✓ Excel Batch Export
OPTIBIM Pro Beam dashboard showing IS 456 beam analysis, design and compliance audit results
✓ IS 456:2000 LSM Compliant ✓ OpenSeesPy FEM Validated ✓ Client-Ready PDF Reports ✓ Excel Batch Processing ✓ Engineered in India
Workflow
A simplified three-step process

Achieve robust design optimization, automatic code checks, and documentation generation in minutes.

1
Create Beam
Specify multi-span spans, detailed material constraints, loading specifications, and structural cross-section properties.
2
Run Design
Compute multi-span loading configurations with OpenSeesPy FEM and optimize structural reinforcement distribution.
3
Download Report
Instantly export complete IS 456 compliance logs, structured BBS tables, and high-fidelity drawings.
Platform Modules
Complete Beam Engineering Workflow

Six purpose-built studios, each focused on a distinct phase of the structural workflow.

Dashboard
Project Overview
Project overview, beam vault, active runs, and platform health at a glance.
Projects Vault
Analysis Studio
Structural Analysis
Multi-span beam finite element analysis with interactive bending moment and shear charts.
OpenSeesPy Multi-span Plotly
Design Studio
IS 456 Design Engine
IS 456 flexural and shear calculation selection, complete with top bar curtailment options.
Flexure Shear BBS
Audit Studio
Compliance Auditor
Automatic verification against ductility, steel limit, and spacing clauses of IS 456.
IS 456 Check Compliance
Batch Center
High-Volume Processing
Process hundreds of beam designs simultaneously using standard Excel templates.
Excel I/O Bulk Run PDF
Report Hub
Documentation Generator
Client-ready PDF calculation sheets, complete project summaries, and material BBS charts.
PDF Report XLSX Export Client-Ready
See It In Action
Real output. Real engine. Real IS 456 checks.

Unedited screenshots from OPTIBIM Pro — not mockups.

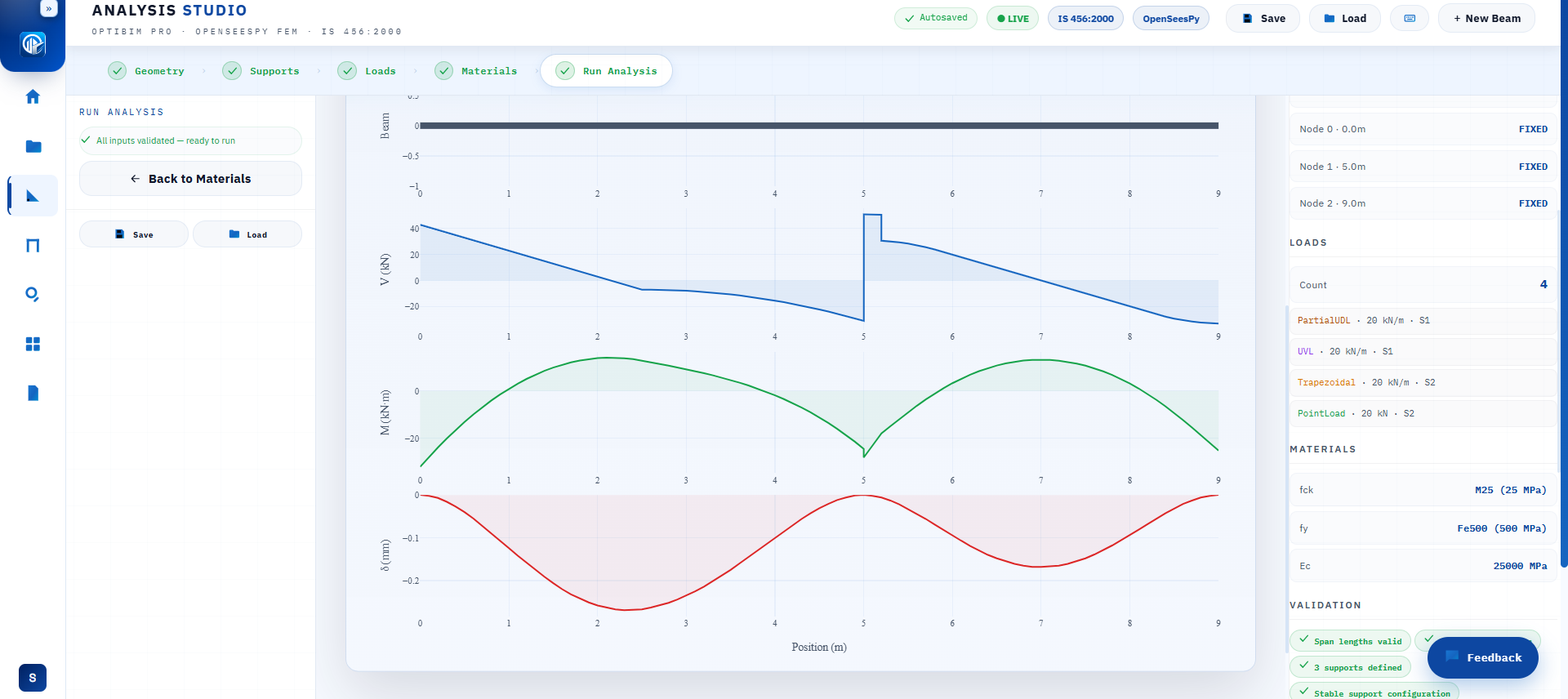

OPTIBIM Pro Analysis Studio showing shear force, bending moment, and deflection diagrams from a live OpenSeesPy FEM run
Analysis StudioFull SFD / BMD / deflection output from a live OpenSeesPy FEM run.

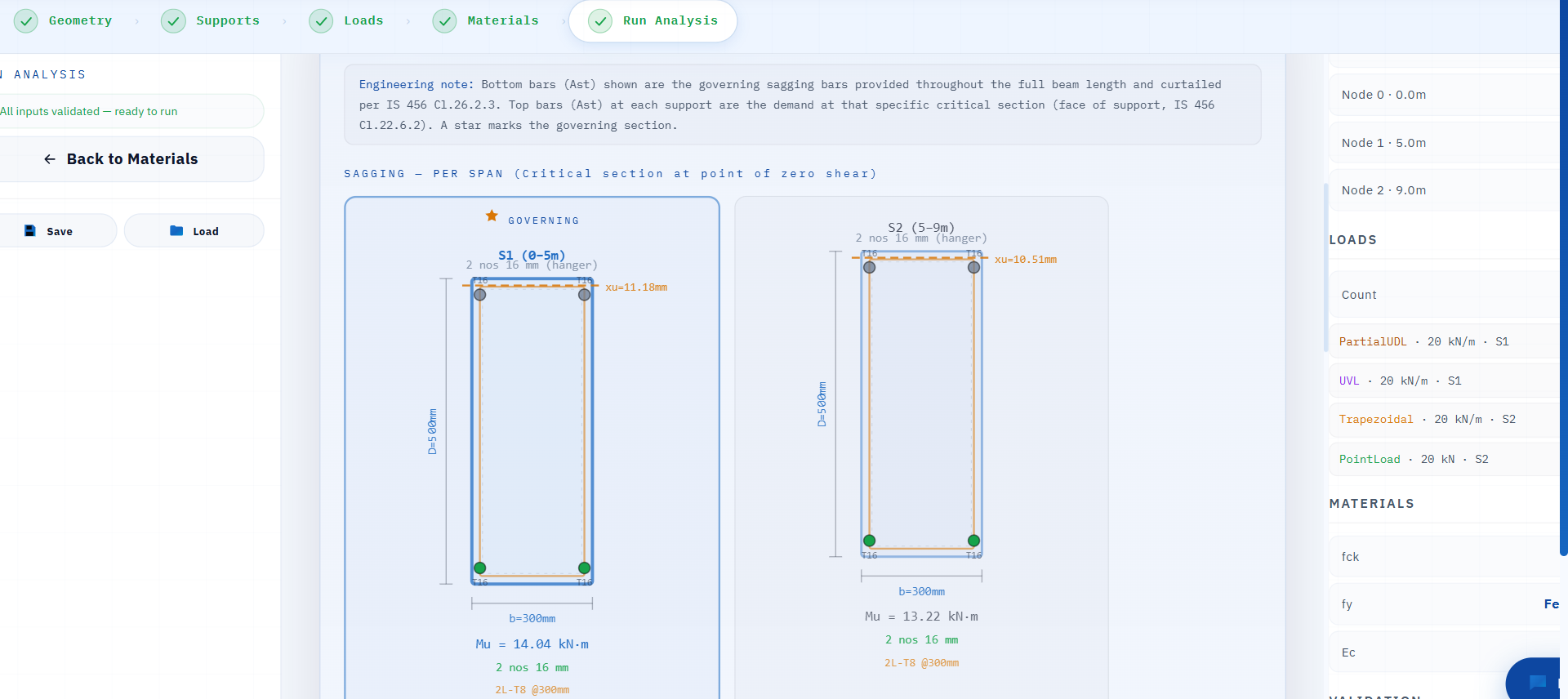

Reinforcement cross-section diagram showing neutral axis depth xu and governing design node
Design StudioGoverning section drawn to scale, with xu and bar layout called out.

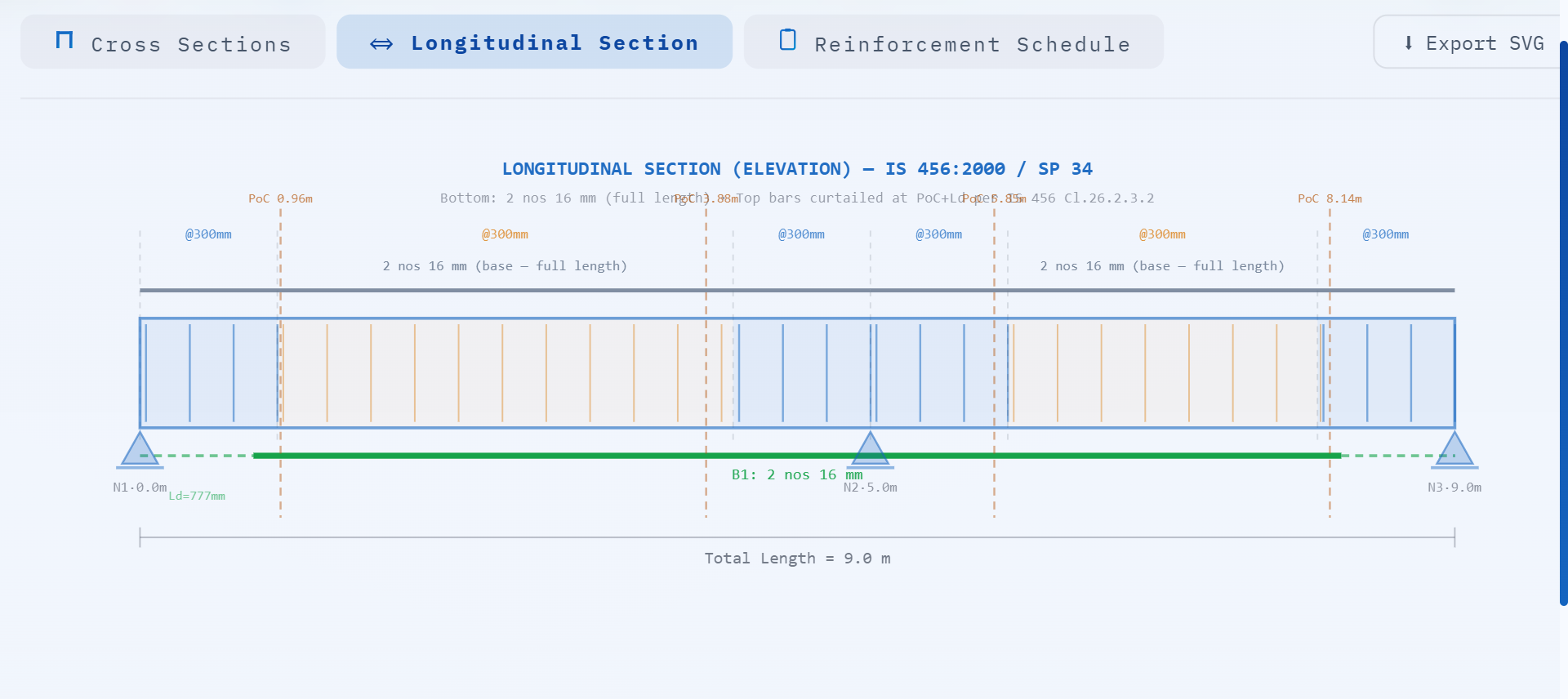

Longitudinal elevation showing bar curtailment lengths and points of contraflexure per IS 456 SP 34
Report HubCurtailment lengths and points of contraflexure — IS 456 / SP 34.

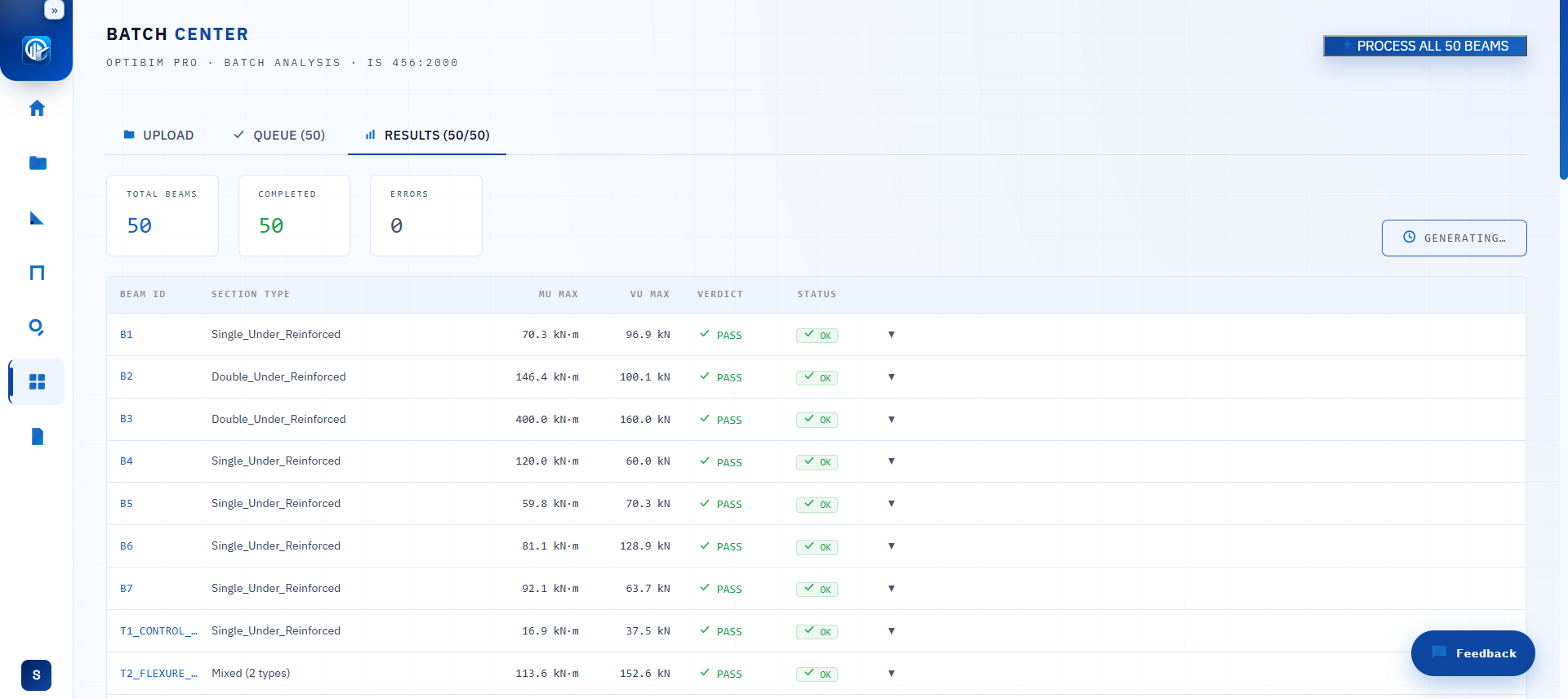

Batch Center dashboard showing 50 of 50 beams processed with zero errors
Batch Center50 beams, one run, zero errors.

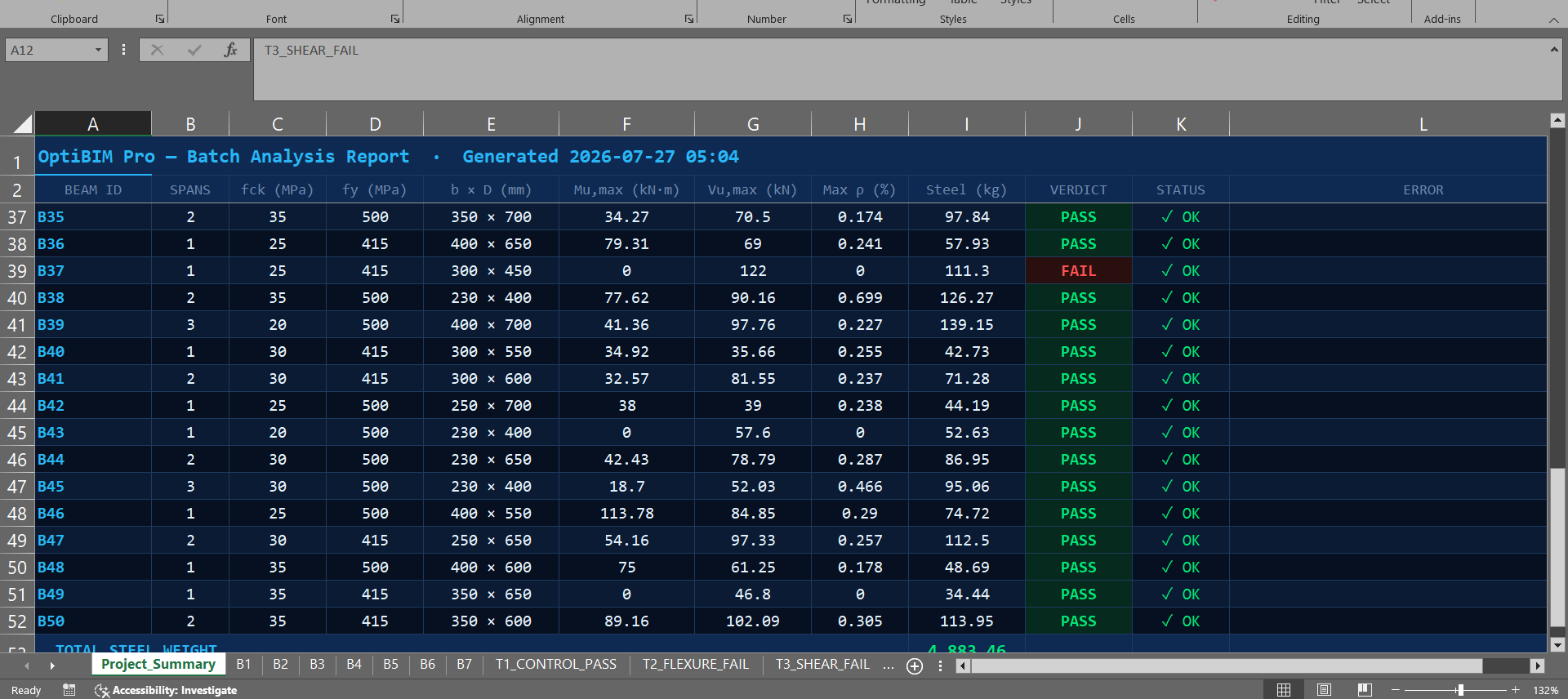

Batch analysis project summary spreadsheet with verdicts and total steel weight across 50 beams
Batch CenterConsolidated Excel summary — every beam, total tonnage.

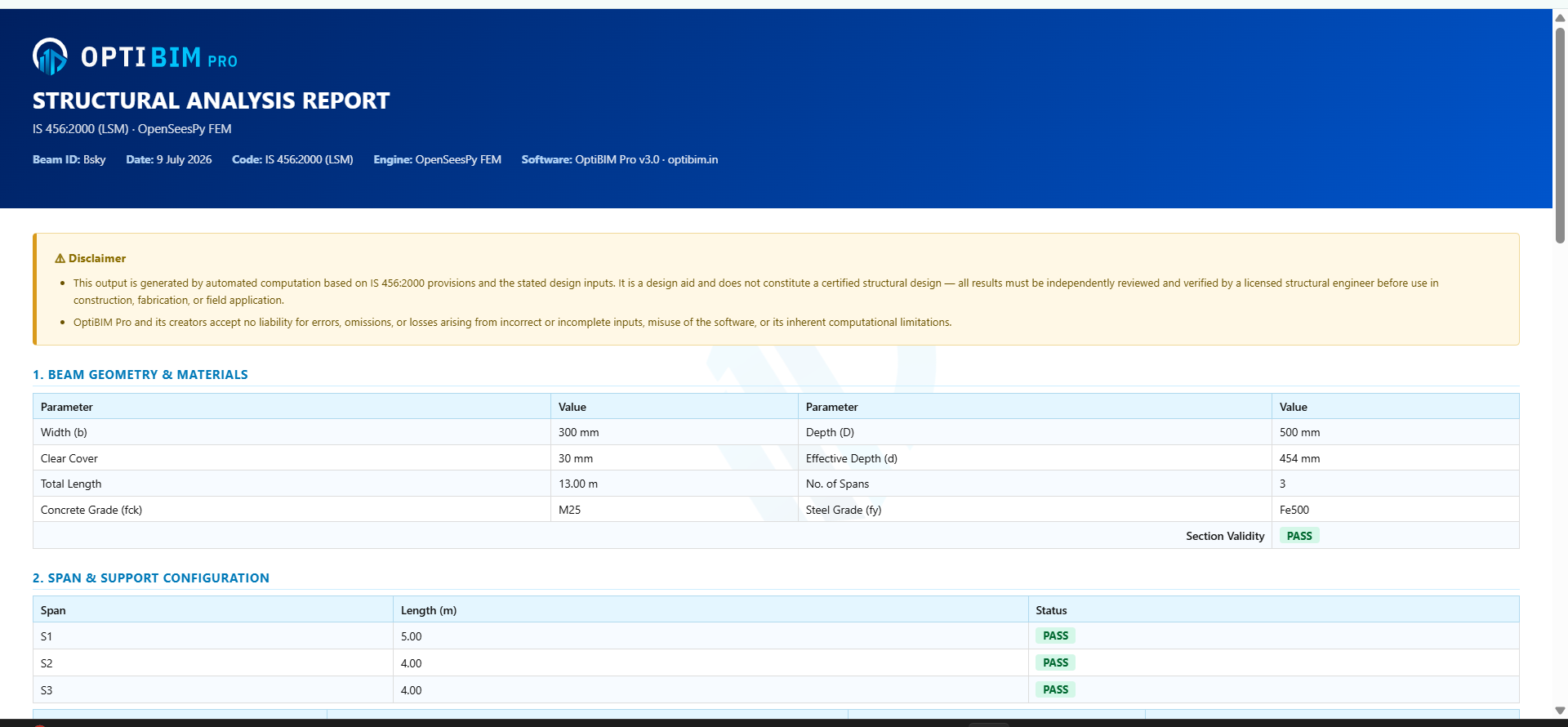

Structural Analysis Report PDF cover page generated by OPTIBIM Pro
Report HubClient-ready PDF reports, generated in one click.
⚠ Not just Pass / Fail

When a section fails, OPTIBIM Pro tells you why — and what to do about it.

This isn't a rubber stamp. When shear demand exceeds concrete capacity, the engine flags a genuine diagonal-compression failure, explains why adding stirrups won't fix it, and points to the specific structural change needed — wider section or greater depth.

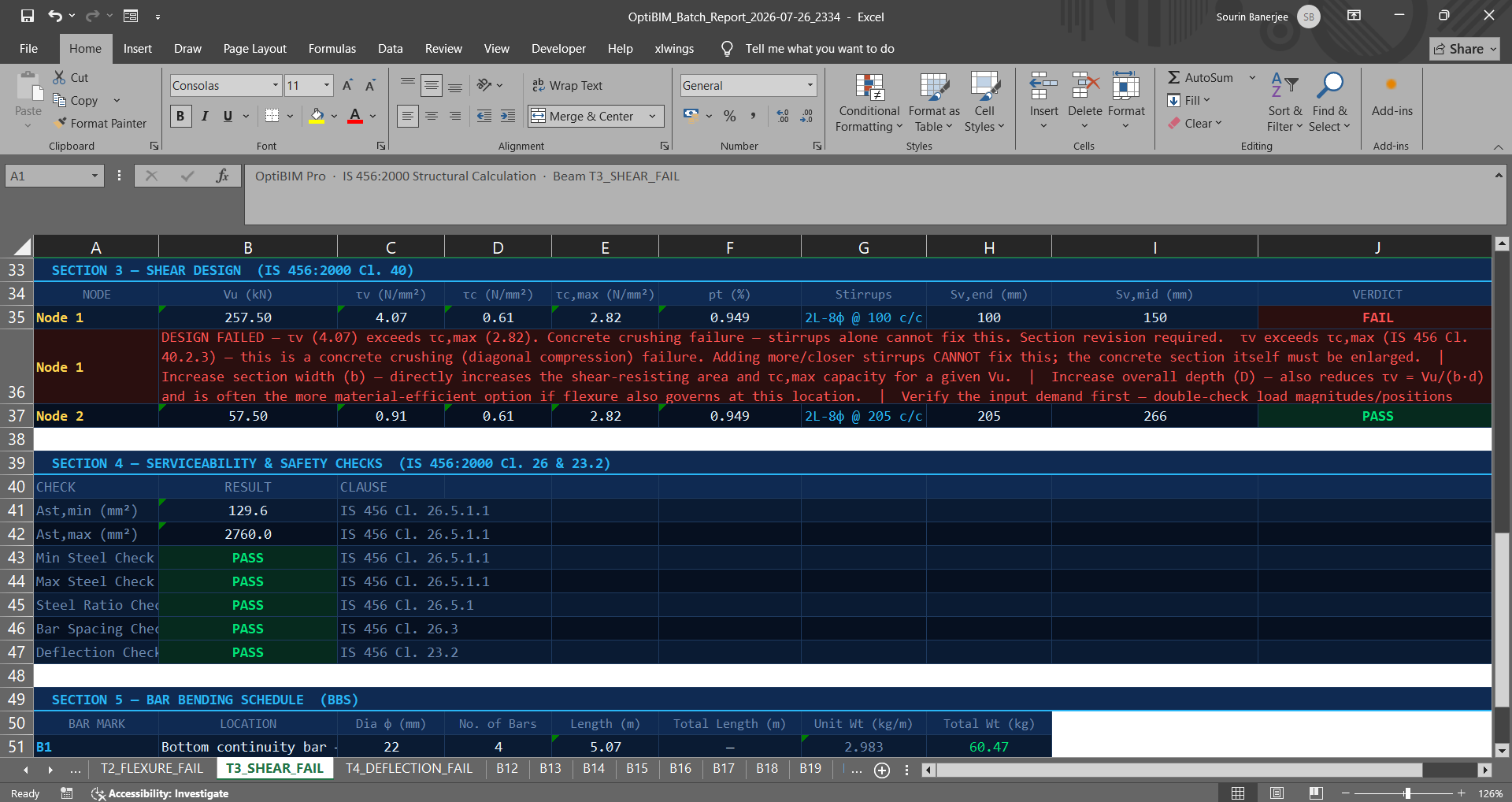

Excel batch report showing a shear design FAIL with detailed IS 456 engineering explanation of the failure and remedy
FAQ
Common questions
Yes. The LSM engine is built strictly to IS 456:2000 clauses — including neutral axis limits, minimum/maximum steel ratios, ductility (brittle failure prevention), and shear stirrup spacing. Audit Studio flags any clause deviation by name.
The Batch Center accepts standard .xlsx files with a predefined template (downloadable from the app). Results are exported as .xlsx and a consolidated PDF report with a cover page and BBS tables.
Absolutely. There are no long-term contracts. You can cancel, upgrade, or downgrade your plan at any time from your account settings. Yearly plans are refunded on a pro-rata basis.
No credit card required for the Free plan. Sign up with your email and start running beam designs immediately — no expiry on the free tier.
OpenSeesPy is the open-source FEM framework powering Analysis Studio. It computes bending moments, shear forces, and deflections for multi-span beams under arbitrary loading — results feed directly into the Design and Audit engines.
The Free tier is designed specifically for students. If you're a faculty member or institution requiring departmental access, contact OPTIBIM directly at optibim.in for a custom academic arrangement.
You get instant access — sign up, pick a plan, and start designing beams right away. Free needs no card; Professional includes a 14-day free trial, also no card required.

Ready to stop doing it manually?

Join structural engineers across India who design IS 456 beams in seconds, not hours — with calculations that hold up to peer review.
